- Route the 2 pin connector harness [A] as shown below.

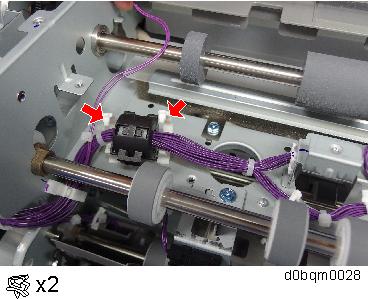

- Open the clamps that fix the ferrite core to free the harness.

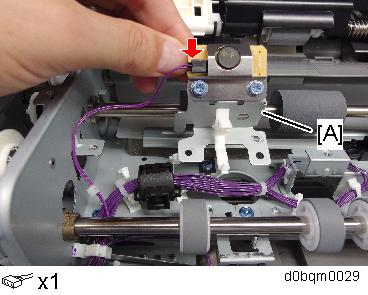

Connect the 2 pin connector to the double-feed sensor (emitter) [A].
- Install the double-feed sensor (emitter) [A] to the ADF frame.
- Fit the sensor bracket to the positioning projection and then screw it.
- Open the ferrite core, and then put the harness of the double feed sensor into the core, and clamp it.
