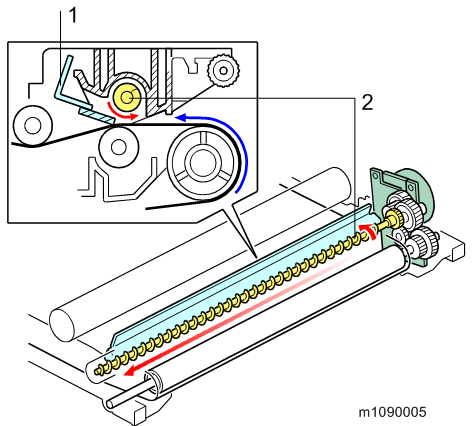

The Image Transfer Belt is cleaned by the transfer cleaning blade. Any remaining toner that is scraped off is conveyed to the left side of the unit via the waste toner transport coil.

  1. Image Transfer Belt Cleaning Blade
  2. Waste Toner Transport Coil
