1. Remove the rear cover (Rear Cover).
  2. Remove the paper exit cover (Paper Exit Cover (with Operation Panel)).
  3. Open the inner cover.

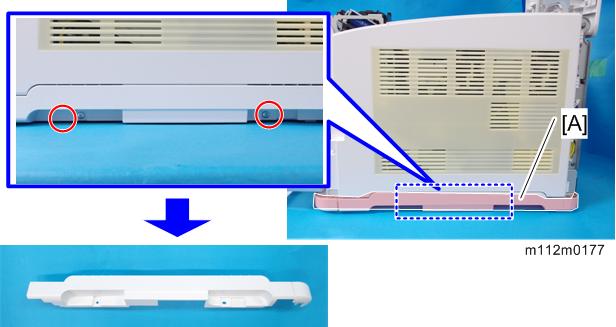

  4. Remove the right lower cover [A] (×2).

    • When attaching the right lower cover [A], fit the cover into the hole [B] of the main unit as shown in the photo below.

  5. Remove the right cover [A] (×4).
  6. Remove the right cover [A] from the bottom.

    • Check the position of the hooks in the photo below before removing.
    • When attaching the right cover, first attach it from the top. Then fit the hooks [A] into the holes [B] of the main unit as shown in the photo below.
