SP C352DN
Replacement and Adjustment
Exterior Covers
Paper Exit Cover (with Operation Panel)
Open the front cover [A].
Open the upper cover [A].
Remove the connector cover [A] (
×1).

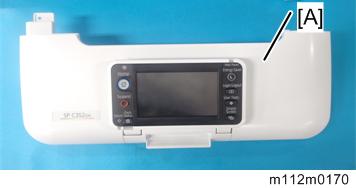

Remove the paper exit cover [A] (
×3,
×1).
