1. Remove the left cover. (Left Cover)

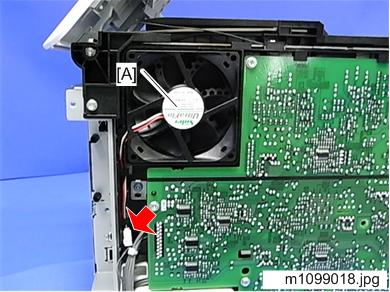

  2. Pull out the cooling fan motor [A] (hook ×2).

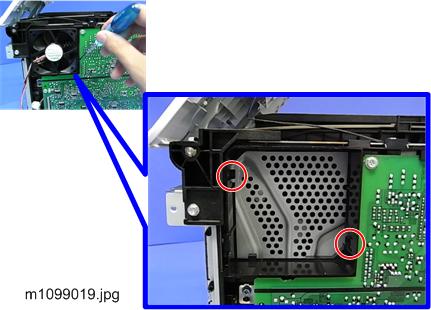

    • Release the two hooks holding the fan before pulling. (The hooks are circled in red in the picture shown below.)

  3. Remove the connector and then remove the cooling fan motor [A].
