Main Board

Preparation

• Rear upper cover (Rear Upper Cover)

• Rear lower cover (Rear Lower Cover)

1. The main board is on the back of the machine.



2. Disconnect the board (x44).

   • There are approximately 17 clamps around the board.

   • Open only as many clamps as necessary to remove the board. This will keep the connectors aligned and make it easier to re-connect them.

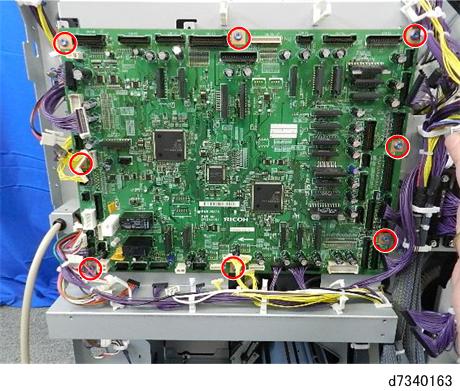

3. Disconnect the board (x8).

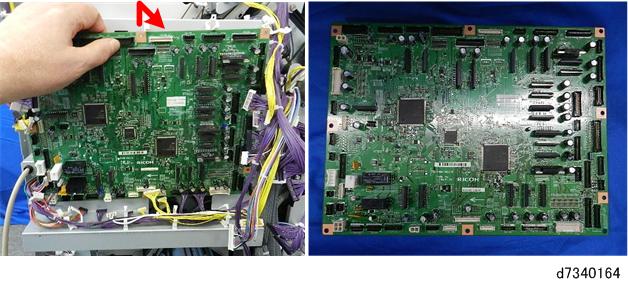

4. Remove the board.
