Drag Roller Unit

Preparation

• End fence End Fence

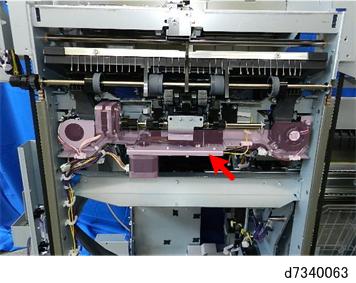

1. This is the drag roller unit.

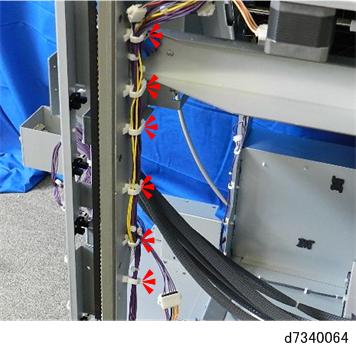

2. Harness connectors (x6)



3. Connectors ( x2, x4)



4. Free harnesses [A] (x2).

5. Disconnect small harness [B] (x1)



6. Remove:

   [A] Front ( x2)

   [B] Rear ( x2)



7. Remove the drag roller unit.
