• Make sure that you have the EID (Entitlement ID) issued when the customer purchased this option.

  1. Access the print server from the local or remote console.
  2. Click [Stop] to suspend the printer operation.
  3. Select [Configuration]  [DFE]  [Features].
  4. Click [Install].
  5. Select the RIP software and click [OK].
  6. Write down the string that is shown at [System Fingerprint].
  7. Click [OK].
    After this screen is shown, operate from the web browser.
  8. Start the web browser, and access the website below:
    https://www.ricohsoftware-entitlements.com
  9. Select “EID” at the [Login/Using] field.
  10. Enter the EID (Entitlement ID) at the [EID] field, and then click [Login].
  11. Put a check mark in “RIP model *” and click [Activate].
  12. In the [System Fingerprint/Locking] field, enter the “System Fingerprint” that was obtained in step 6 in the RIP model * pop-up screen, and click [Generate].
  13. Click [Save to File], select the desired destination icon, and then save the generated license file.
    Alternatively, send the license file to the email address you registered.
  14. Change the extension of the license file to ".key".
    Return to the console screen.
  15. Select the destination icon of the saved license file (USB memory/ DVD/network), and select the license file.

  16. Click [Load].

    • When loading from the USB memory, insert a USB memory into the front USB port of the print server. It is not recognized in the rear USB ports of the print server.
    • Clicking [Computer] when accessing from the remote console allows you to upload the license file from the client PC.

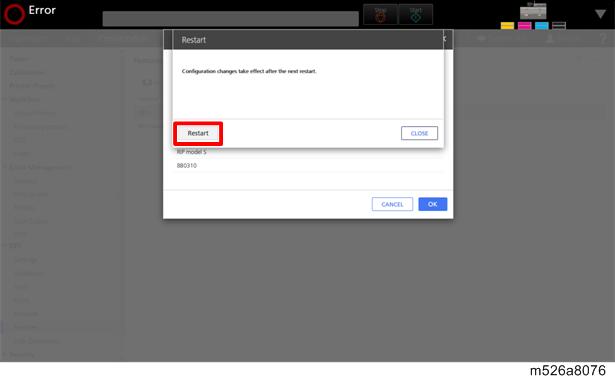

  17. When you are prompted to restart the system, click [Restart].
