- Remove the left cover (Left Cover)
- Open the clamp and remove the connector.
- Remove the cooling fan with the bracket [A].

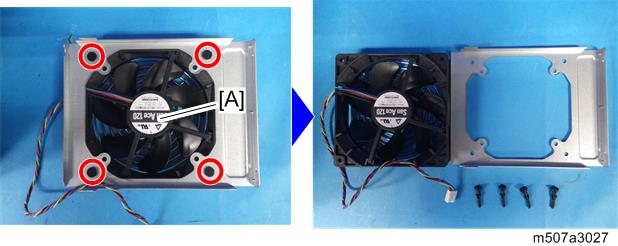

Remove the cooling fan [A] (rubber mount ×4).
- When installing, attach the fan to the bracket so that the fan label is in the same direction as the photo.
- When installing, pull the rubber mount [A] from the side of the fan.
