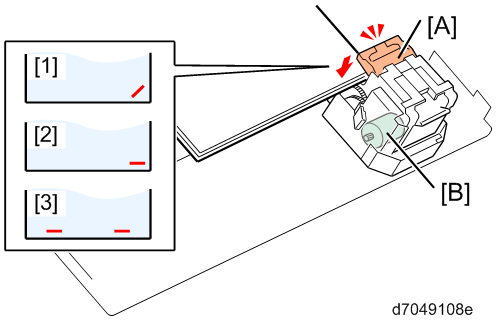

The staple hammer motor [B] pushes the staple hammer [A] down in order to staple the paper stack. The stapling positions are as follows:

  • For oblique stapling: [1]
  • For horizontal stapling: [2]
  • For horizontal stapling at 2 points: [3]
