Finisher SR3230
Replacement and Adjustment
Main Motors
Feed Out Motor
Remove the corner stapling unit. (
Corner Stapling Unit
)

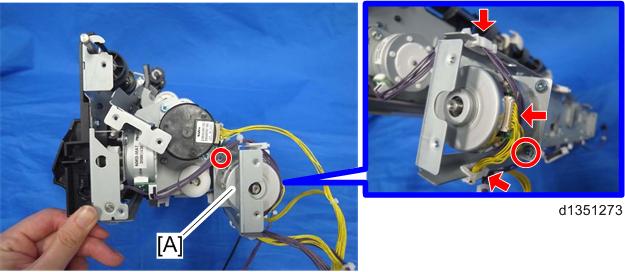

Remove the feed out motor [A] (
x 2,
x 1,
x 2).
