1. Remove the corner stapling unit. (Corner Stapling Unit)
  2. Remove the stapler bracket [A] ( x 3, x 1).

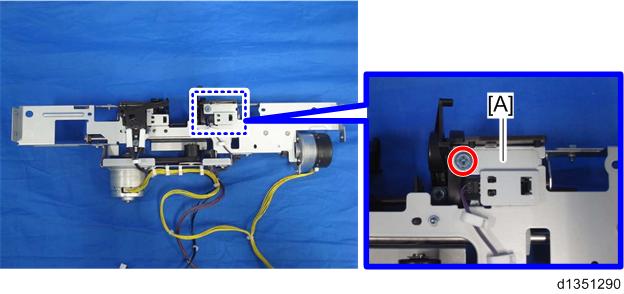

  3. Turn back the stapler bracket, and remove the trailing edge pressure plate HP sensor bracket [A] ( x 1).

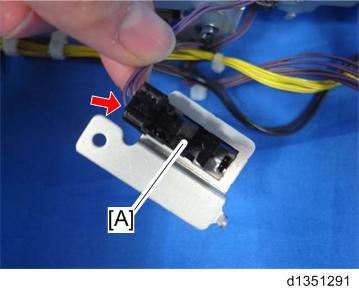

  4. Remove the trailing edge pressure plate HP sensor [A] ( x 1).
