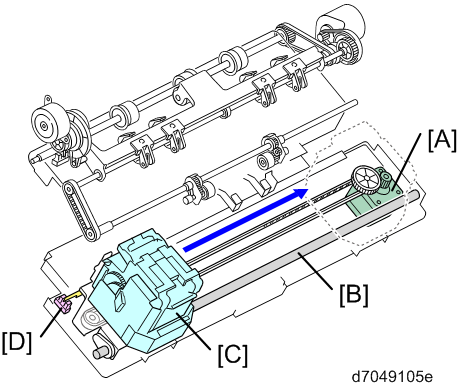

The stapler movement motor [A] moves the stapler [C] along the guide rod [B]. After a job finishes, the stapler [C] returns to its HP (the stapler HP sensor [D] detects the base of the stapler).
The stapler movement motor [A] moves the stapler [C] along the guide rod [B]. After a job finishes, the stapler [C] returns to its HP (the stapler HP sensor [D] detects the base of the stapler).
