Finisher SR3230
Detailed Descriptions
Layout

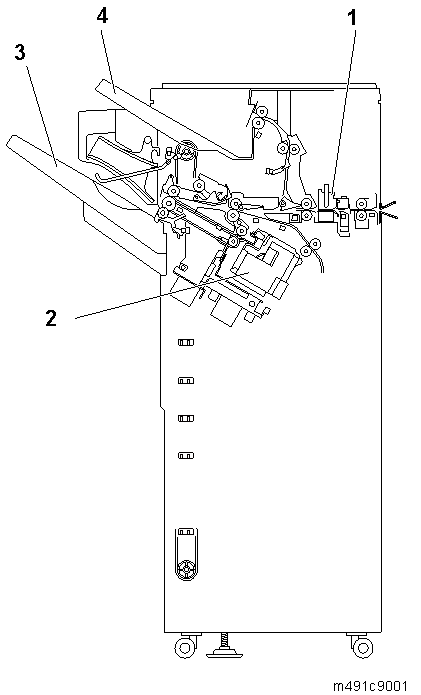

General Layout
No.
Name
1
Punch Unit
2
Corner Stapler
3
Shift Tray
4
Proof Tray
