Finisher SR3230
Replacement and Adjustment
Main Motors
Stacking Roller Motor
Remove the rear upper cover. (
Rear Upper Cover, Rear Lower Cover, Upper Cover
)

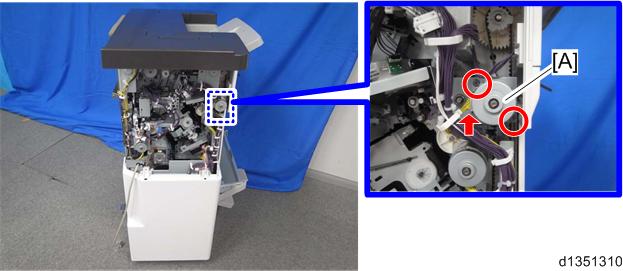

Remove the stacking roller motor [A] (
x 2,
x 1).
