This board has two blocks of dip switches. When you reinstall the main board, follow the procedure below regarding the dip switch settings.

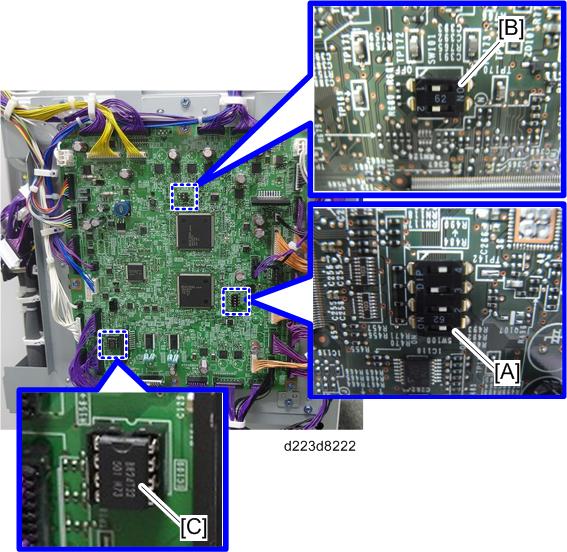

  1. Check the settings of dip switch [A] on the old main board.
  2. Replace the main board.
  3. Change the settings of dip switch [A] on the new main board to match the settings on the old main board.
  4. Make sure the switches of dip switch [B] on the new main board are all OFF.
  5. Remove the EEPROM [C] from the old board and install it on the new board.

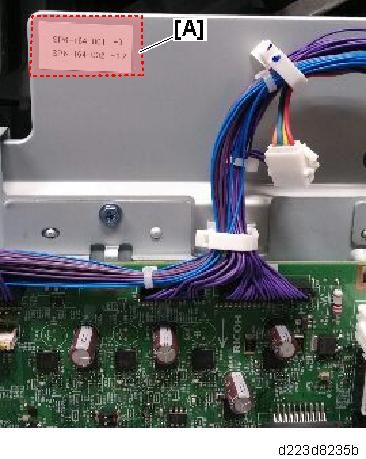

  6. Locate the label [A] attached near the right corner of the board.
  7. Go into the SP mode, open these SP codes, and then enter the numbers you see on the label.
    • SP6121-001 NV Adj. Data: Jog Position: Factory Adj.
    • SP6121-002 NV Adj. Data: Fold Position: Factory Adj.
