1. Remove the paper guide unit. (Paper Guide Unit)

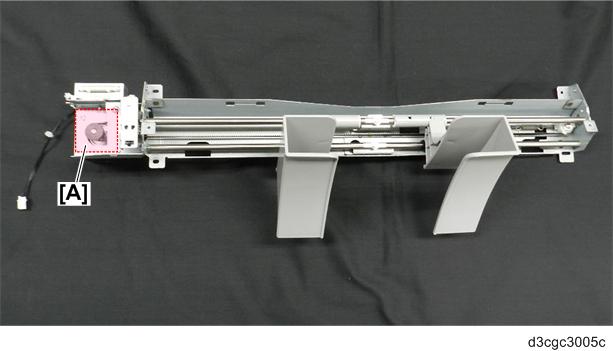

  2. The paper guide motor is at [A].
  3. Remove the sensor bracket (x1).

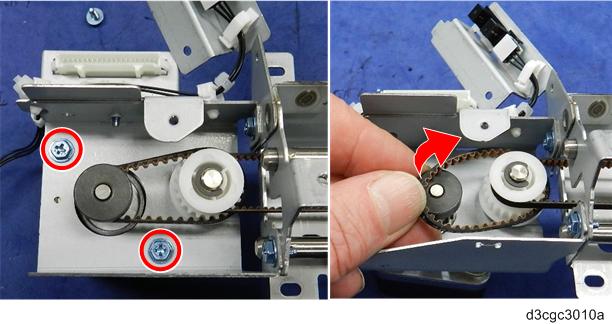

  4. Unfasten the motor, and disconnect the belt (x2, x1).

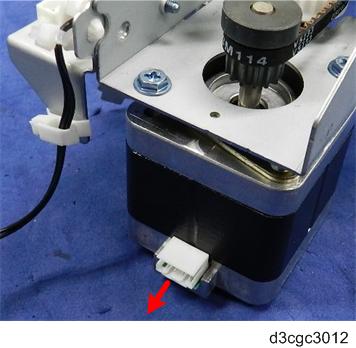

  5. Disconnect the motor harness, and then remove the motor (x1).

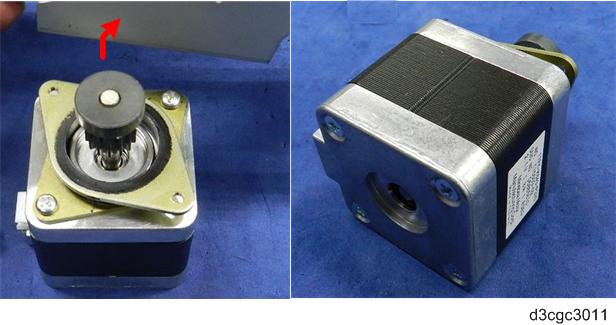

  6. When you re-install the motor, make sure that the connector is pointing to the back of the unit.
