- Remove the following covers.
- Front cover (Front Cover, Front Left Side Cover)
- Front left side cover (Front Cover, Front Left Side Cover)
- Left cover (Left Cover)
- Rear upper cover (Rear Upper Cover, Rear Lower Cover, Upper Cover)
- Rear lower cover (Rear Upper Cover, Rear Lower Cover, Upper Cover)

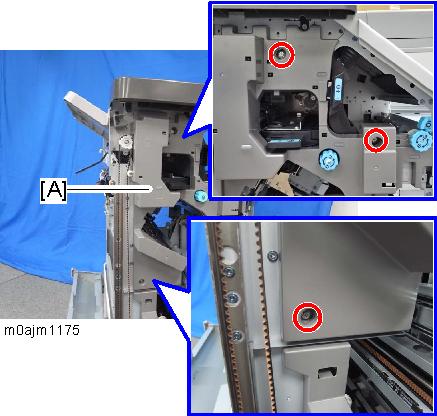

Remove the inner upper cover [A] (
x 3).

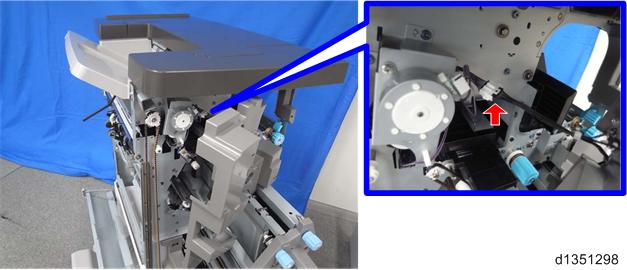

- Disconnect the harness from the back side of the inner upper cover when you remove the inner upper cover.
- Disconnect the harness from the back side of the inner upper cover when you remove the inner upper cover.

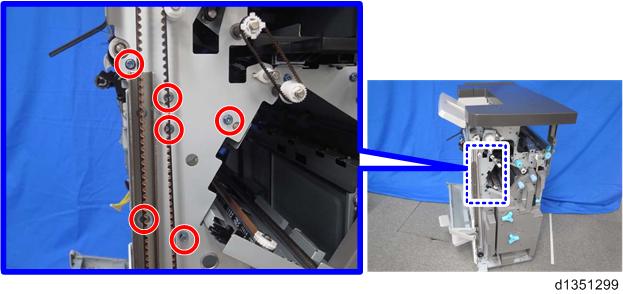

- Remove 6 screws from the front side of the finisher ( x 6).

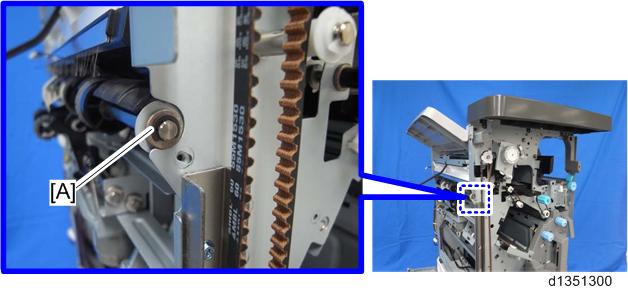

- Remove the bushing [A] from the front side of the finisher (C-ring x 1).

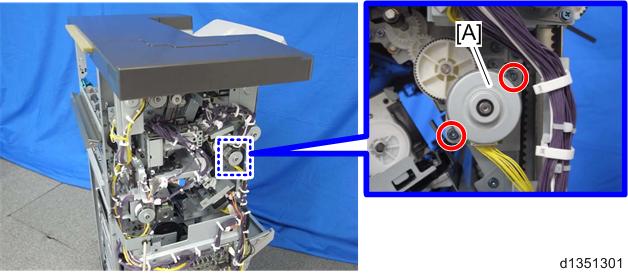

- Remove the pressure release motor bracket [A] from the rear side of the finisher ( x 2).

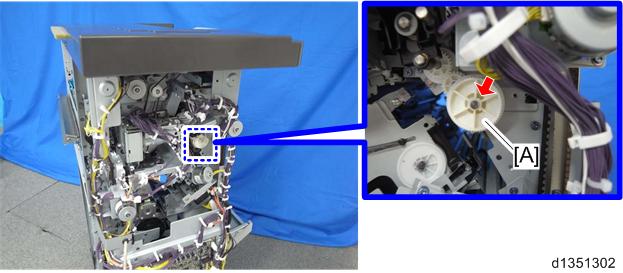

- Remove the gear [A] from the rear side of the finisher (snap-fit x 1).

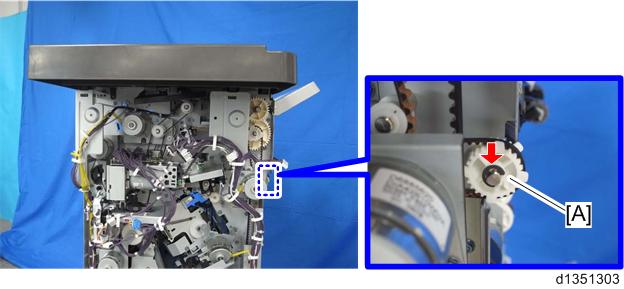

- Remove the pulley [A] from the rear side of the finisher (C-ring x 1).

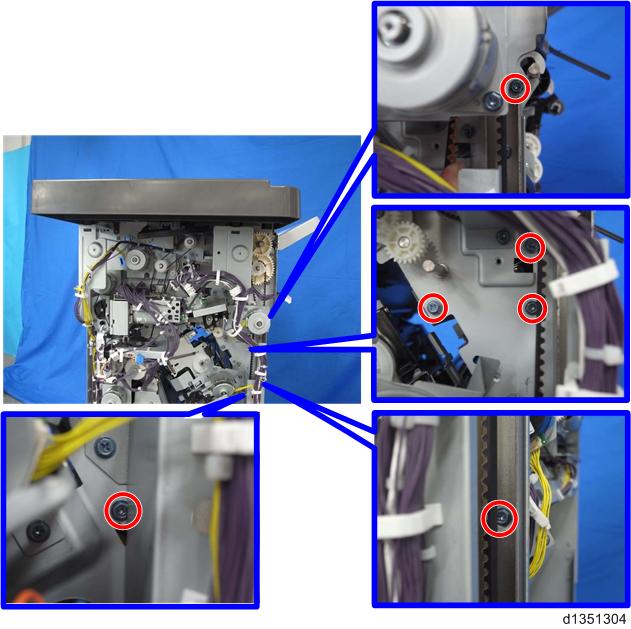

- Remove 6 screws from the rear side of the finisher ( x 6).

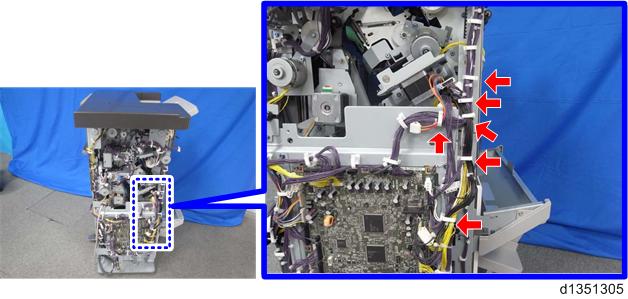

- Open the clamps shown below (
x 6).

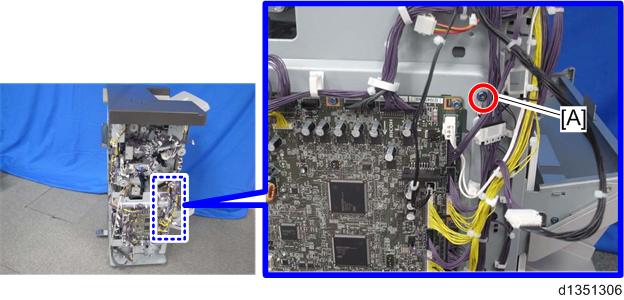

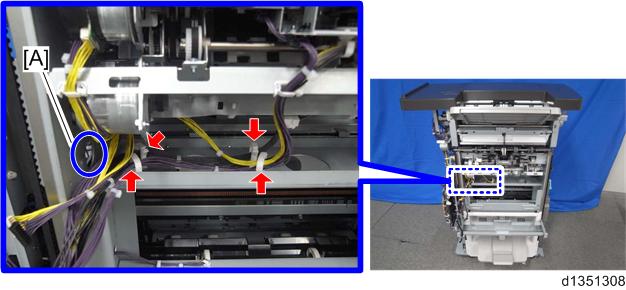

- Disconnect the ground wire [A] of the main board ( x 1).

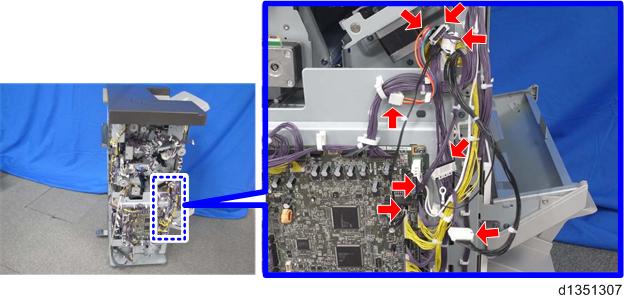

- Disconnect the connectors shown below (
x 8).
- Pull out the harnesses disconnected in step 11 to the right side of the finisher through the hole [A].
- Remove the harness from the clamps ( x 4).

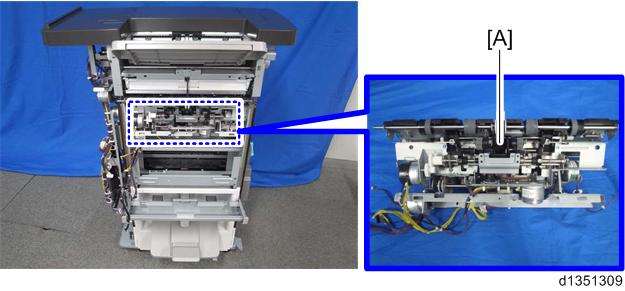

- Remove the corner stapling unit [A] from between the front and left plate.
