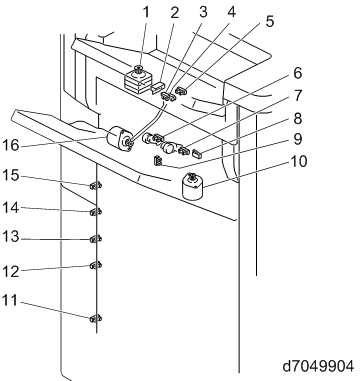

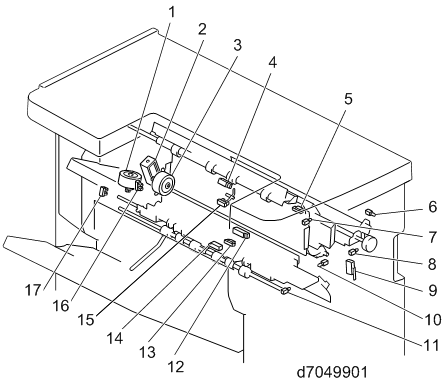

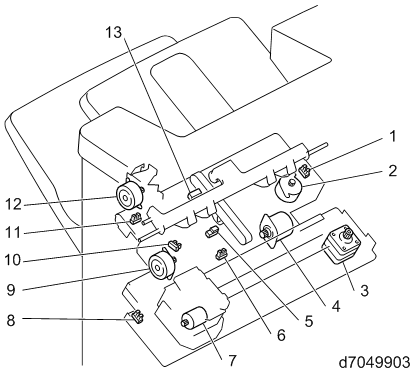

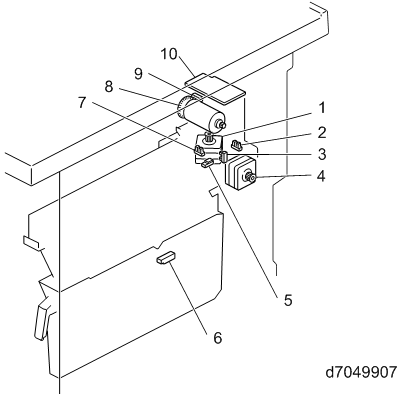

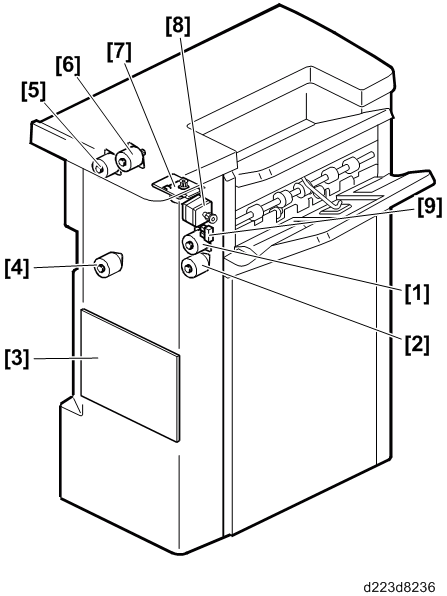

Electrical Component Layout

1

Exit Motor

2

Transport Motor

3

Main Control Board

4

Pre-stack Transport Motor

5

Entrance Transport Motor

6

Horizontal Transport Motor

7

Tray Lift Motor

8

Paper Guide Motor

9

Paper Guide HP Sensor

1

Shift Motor

10

LED 3

2

Upper Junction Gate Solenoid

11

LED 2

3

Lower Junction Gate Motor

12

Horizontal Transport Sensor

4

Proof Tray Full Sensor

13

Switchback Transport Sensor

5

Entrance Sensor

14

Transport Path Paper Sensor

6

LED 5

15

Proof Tray Exit Sensor

7

LED 1

16

Lower Junction Gate HP Sensor

8

LED 4

17

Shift Roller HP Sensor

9

Front Door Switch

1

Jogger Fence HP Sensor

8

Stapler HP Sensor

2

Jogger Motor

9

Leading Edge Guide Motor

3

Corner Stapler Movement Motor

10

Leading Edge Guide HP Sensor

4

Feed-out Belt Motor

11

Positioning Roller HP Sensor

5

Staple Tray Paper Sensor

12

Positioning Roller Motor

6

Feed-out Belt HP Sensor

13

Shift Tray Exit Sensor

7

Corner Stapler Motor

1

Paper Exit Guide Plate Motor

9

Return Roller HP Sensor

2

Paper Exit Guide Plate Limit Switch

10

Return Roller Motor

3

Booklet Stack Height Sensor 1

11

Shift Tray Lower Limit Sensor 5

4

Booklet Stack Height Sensor 2

12

Shift Tray Lower Limit Sensor 4

5

Exit Guide Plate HP Sensor

13

Shift Tray Lower Limit Sensor 3

6

Trailing Edge Press HP Sensor

14

Shift Tray Lower Limit Sensor 2

7

Shift Paper Height Sensor

15

Shift Tray Lower Limit Sensor 1

8

Upper Tray Height Limit Switch

16

Trailing Edge Press Motor

1

Punch Unit Movement Motor

2

Punch Unit HP Sensor

3

Punch Registration HP Sensor

4

Punch Registration Motor

5

Punch Registration Sensor

6

Punchout Hopper Full Sensor

7

Punch HP Sensor

8

Punch Drive Motor

9

Punch Motor Rotation Sensor

10

Punch Unit Control Board
