1. Remove the paper guide covers. (Paper Guide Cover)

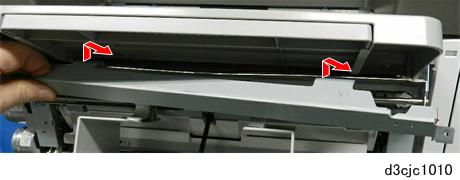

  2. Disconnect the cover support bracket.

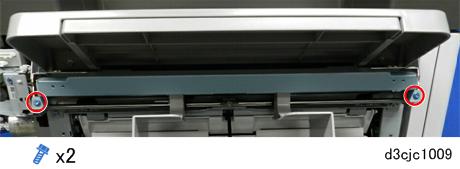

  3. Remove the cover support bracket.

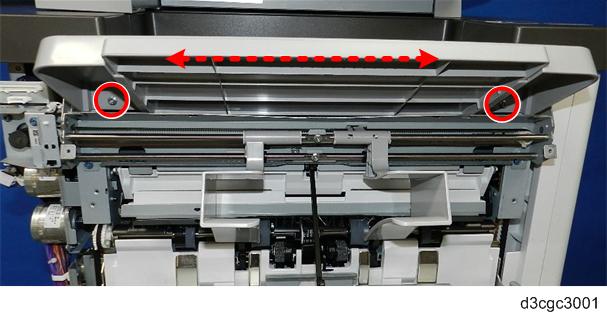

  4. Loosen (do not remove) the screws on both ends of the paper exit. This will loosen the tray so that you can move the tray slightly side-to-side; then you can remove the bracket screws more easily.

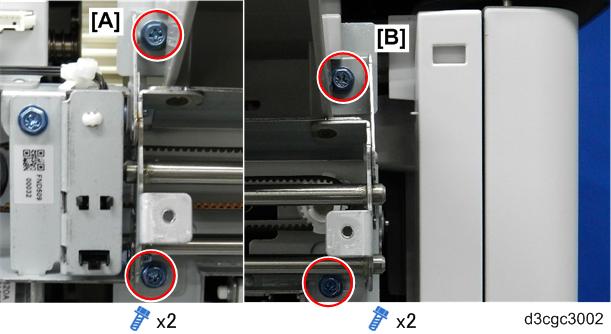

  5. Disconnect the rear end of the paper guide unit bracket [A].
  6. Disconnect the front end of the paper guide unit bracket [B].

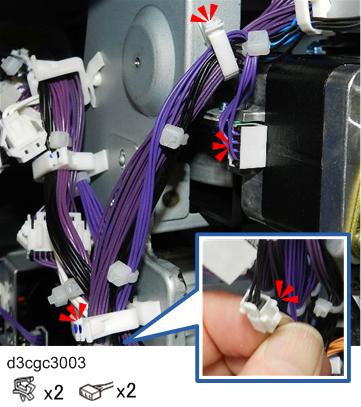

  7. At the rear, open the clamps and disconnect the motor and sensor harnesses.

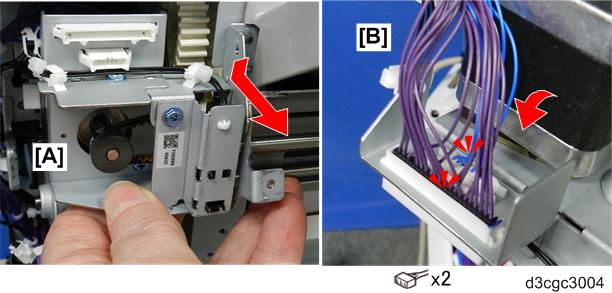

  8. Hold the unit bracket with both hands, lower the rear end [A], roll it toward you slightly, and then disconnect the harnesses [B].

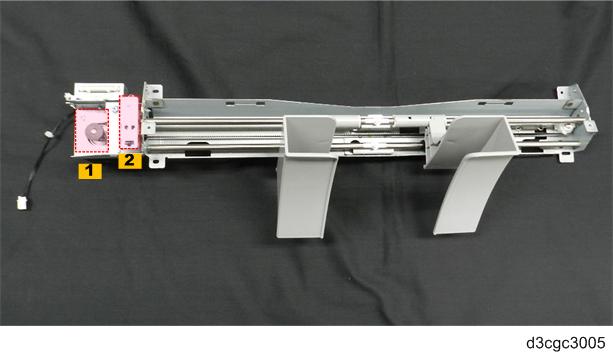

  9. Lay the unit on a flat clean surface so that you can see the paper guide motor [1] and paper guide position sensor bracket [2].
