Finisher SR3230
Replacement and Adjustment
Covers
Proof Tray
Remove the following covers.
Rear upper cover (
Rear Upper Cover, Rear Lower Cover, Upper Cover
)
Upper cover (
Rear Upper Cover, Rear Lower Cover, Upper Cover
)

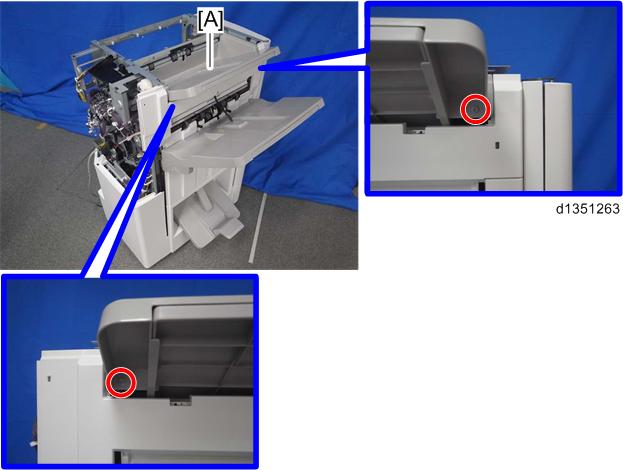

Remove the proof tray [A] (
x 2).
