1. Remove the paper guide unit. (Paper Guide Unit)

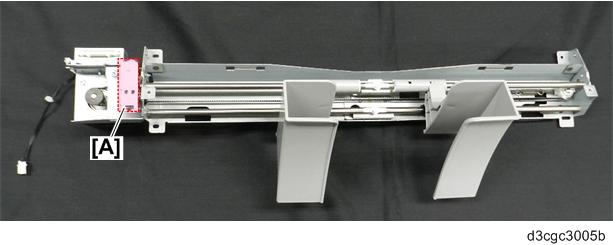

  2. The paper guide HP sensor is located at [A].

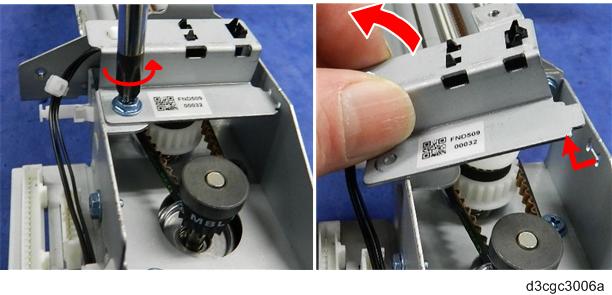

  3. Remove the sensor bracket [A] (x1).

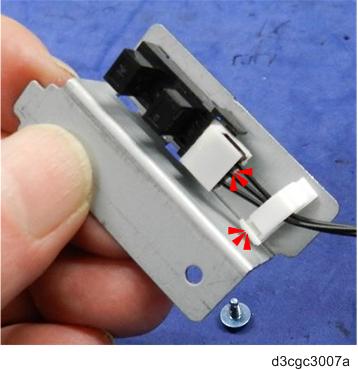

  4. Open the clamp and disconnect the sensor (x1, x1).

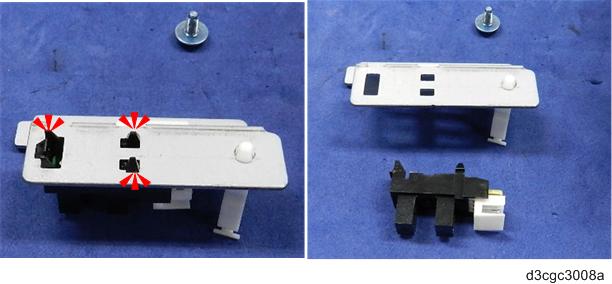

  5. Separate the sensor and bracket (tab x3).
