• Turn off the main power switch and unplug the power cord before replacing the PSU.

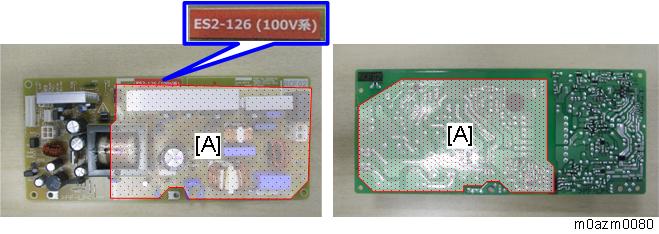

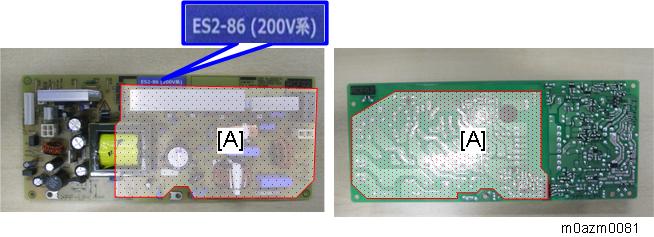

  • Do not touch the areas outlined in red [A] in the following diagrams when replacing the PSU. Residual charge on the board may cause electric shock.







  1. Left cover (Left Cover)
  2. Harness guide (Black AIO Motor)
  3. Power cord bracket [A].

  4. Power switch bracket [A]

  5. PSU assembly [D] ( × 4, × 5)
  6. PSU [E] ( × 4)
