After the right tray has finished descending, if there is paper in the left tray, the left tray transfer fence shifts, and the paper in the left tray is transferred to the paper feed tray. When the paper has been transferred to the right tray, the left tray transfer fence returns to its original position, until the transfer home position sensor turns OFF (the sensor is blocked).
The left tray end fence is moved by the transfer motor (DC motor inside the lift/transfer unit).
When the right tray has finished descending, the transfer motor is driven, and the left tray transfer fence begins to shift.
After the left tray paper sensor detects no paper (detection is by a feeler), the left tray transfer fence shifts for a certain time that depends on the paper size. After shifting, the transfer motor turns OFF.
- The time for which the left tray transfer fence shifts is set for either A4 or LT paper, so that the paper stops at the feed position of the right tray

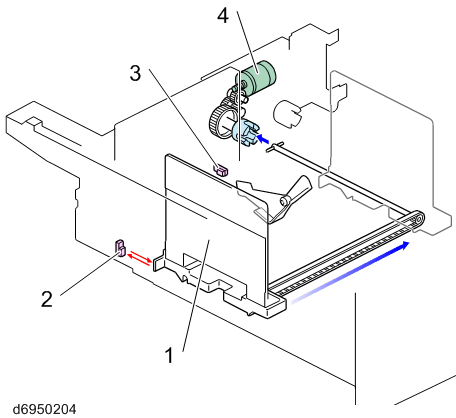

No. | Description |
|---|---|
1 | Left tray transfer fence |
2 | Paper transfer home position sensor |
3 | Left tray paper sensor |
4 | Paper transfer motor (inside lift transfer unit) |
