LCIT PB3260
Replacement and Adjustment
Paper Feed Unit
Open the paper tray.

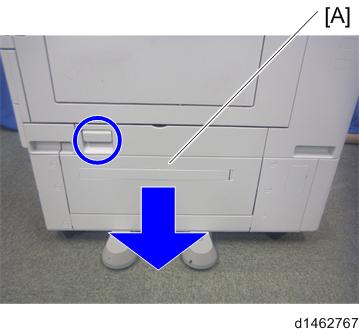

Open the paper transport cover [A].

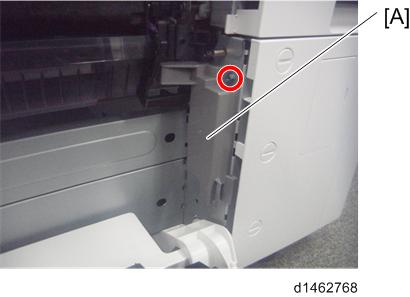

Remove the interlock switch cover [A] (
×1).

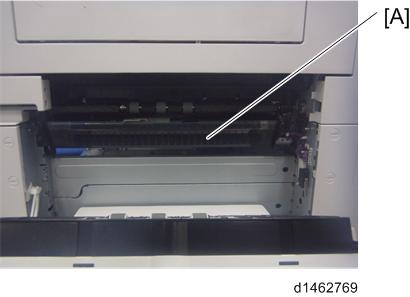

Remove the paper feed guide plate [A].

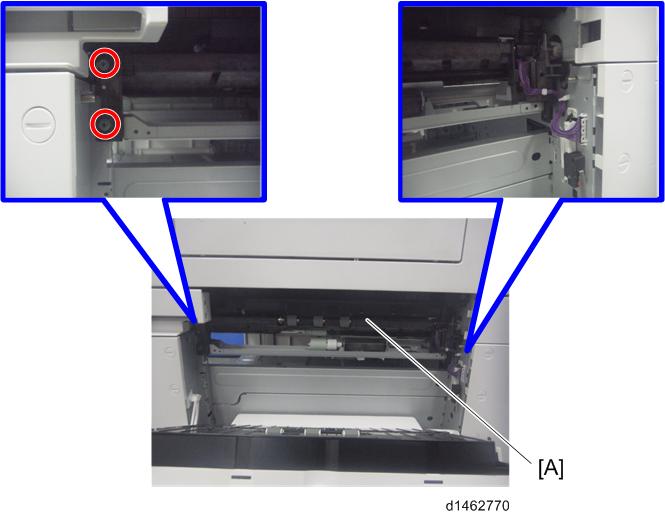

Remove the paper feed unit [A] (
×2,
×1,
×1).
