LCIT PB3260
Replacement and Adjustment
Paper Transfer Motor
Remove the tray motor unit. (
Tray Lift Motor
)

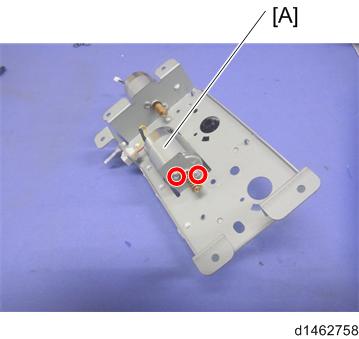

Remove the paper transfer motor [A] (
×2,
×1).
