LCIT PB3260
Replacement and Adjustment
Tray Lift Motor
Remove the tray lift/paper transfer unit. (
Tray Lift/Paper Transfer Unit
)

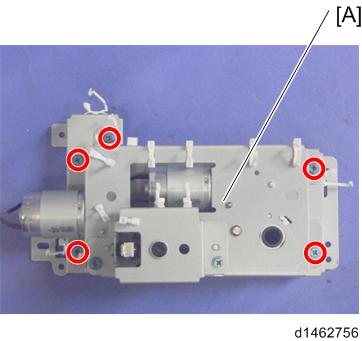

Remove the tray motor unit [A] (
×5).

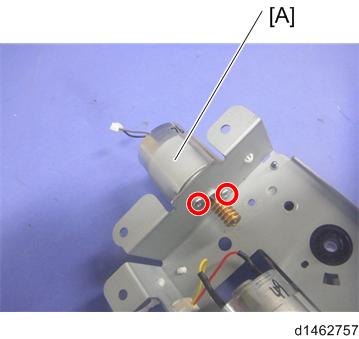

Remove the tray lift motor [A] (
×2).
