LCIT PB3260
Replacement and Adjustment
Left and Right Trays

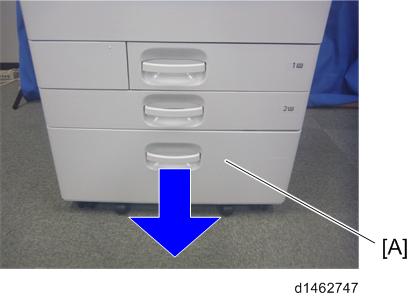

Open the paper tray [A].
Remove the left tray [A].
Remove the right tray [A].
