LCIT PB3260
Replacement and Adjustment
Tray Lift/Paper Transfer Unit
Remove the rear cover. (
Rear Cover
)

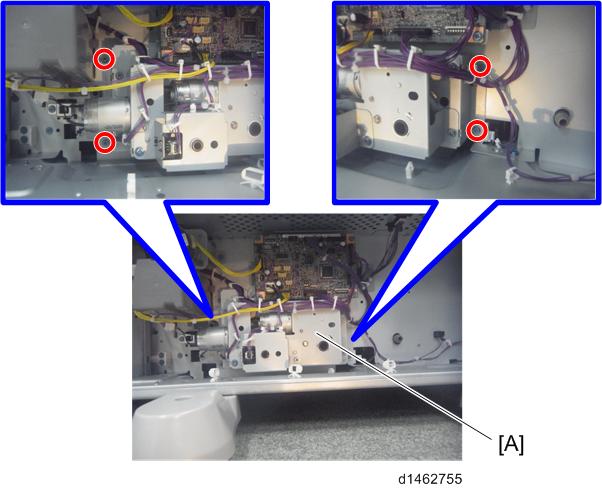

Remove the tray lift/paper transfer unit [A] (
×4,
×3,
×14).
