LCIT PB3260
Replacement and Adjustment
Right Tray Side Fence
Open the left and right trays.

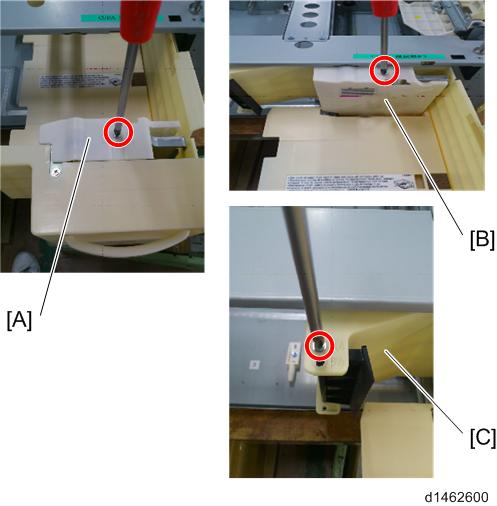

Remove the right tray side fence (front) [A], right tray side fence (rear) [B], and right tray end fence [C] (
×3).
