LCIT PB3260
Replacement and Adjustment
Paper Transfer Home Position Sensor
Open the paper tray.

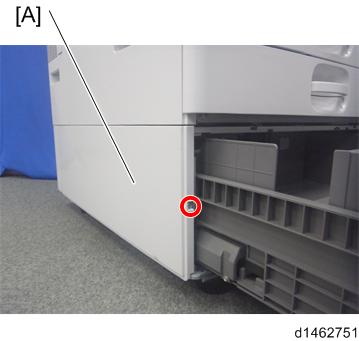

Remove the left cover [A] (
×1).

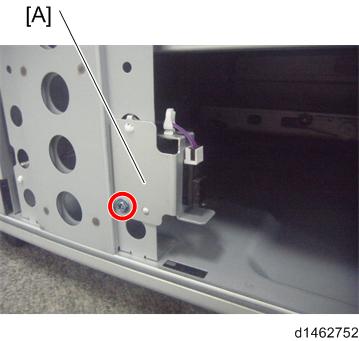

Remove the paper transfer home position sensor unit [A] (
×1,
×1,
×2).

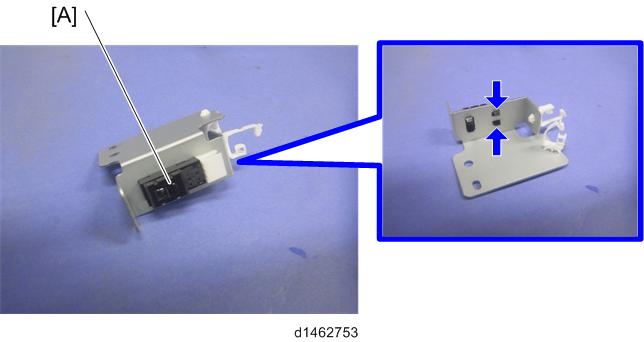

Remove the paper transfer home position sensor [A].
