LCIT PB3260
Replacement and Adjustment
Left Tray Set Sensor Switch
Remove the left tray. (
Left and Right Trays
)
Remove the rear cover. (
Rear Cover
)

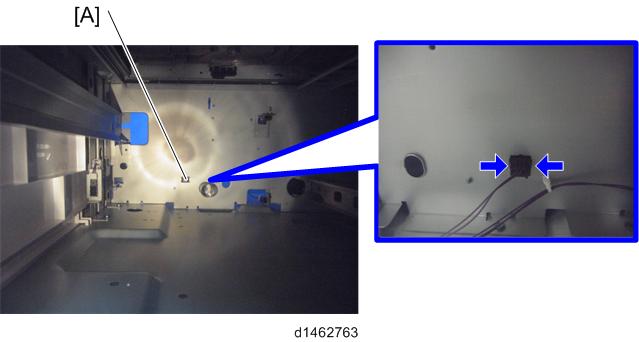

Remove the left tray set sensor switch [A] (
×1).
