LCIT PB3260
Replacement and Adjustment
Rear Cover

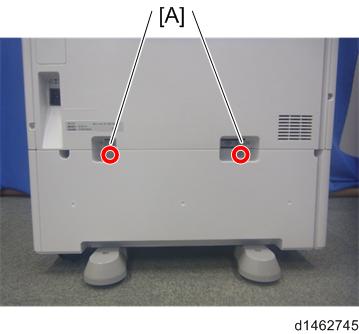

Remove the connecting brackets [A] (2 brackets,
×2).

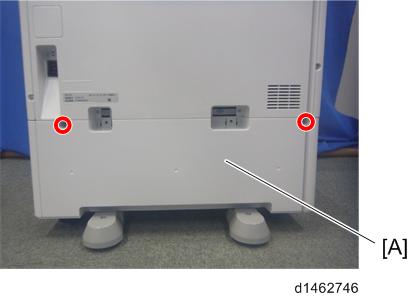

Remove the rear cover [A] (
×2).
