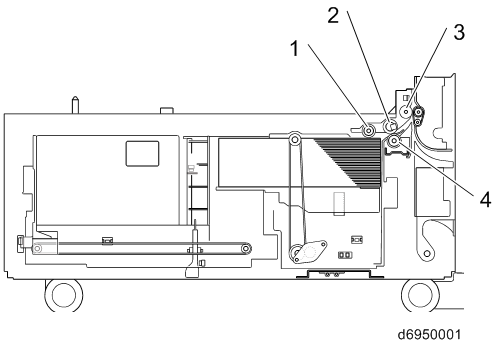

No. | Description | No. | Description |
|---|---|---|---|
1 | Pick-up roller | 3 | Paper transport roller |
2 | Feed roller | 4 | Friction roller |

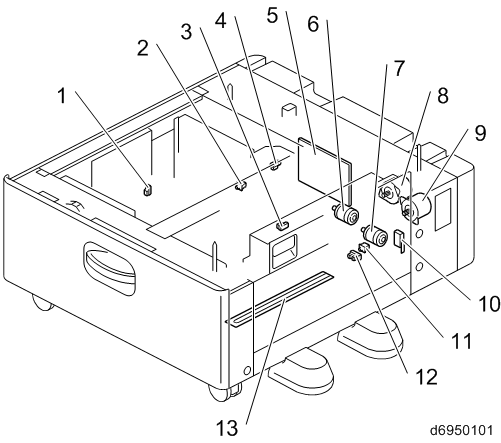

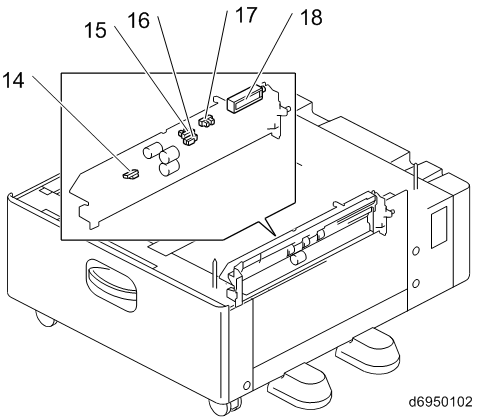

No. | Description | No. | Description |
|---|---|---|---|
1 | Paper transfer home position sensor | 10 | Paper transport cover open/closed switch |
2 | Left tray set switch | 11 | Right tray set switch |
3 | Left tray paper end sensor | 12 | Lower limit sensor |
4 | Transfer fence home position sensor | 13 | Anti-condensation heater |
5 | Controller board | 14 | Paper feed sensor |
6 | Paper transfer motor | 15 | Paper end sensor |
7 | Paper lift motor | 16 | Paper transport sensor |
8 | Paper feed motor | 17 | Upper limit sensor |
9 | Paper transport motor | 18 | Pick-up solenoid |
