LCIT PB3260
Replacement and Adjustment
Right Tray Set Sensor Switch
Remove the right tray. (
Left and Right Trays
)
Remove the rear cover. (
Rear Cover
)

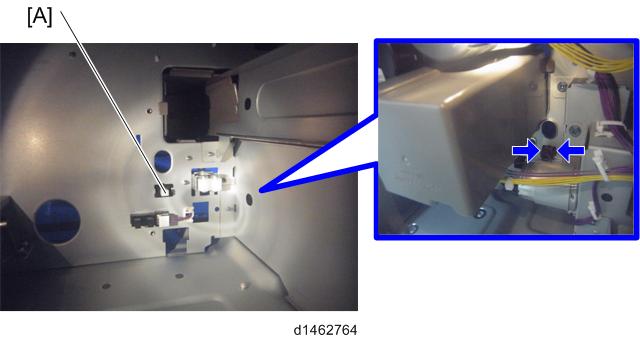

Remove the right tray set sensor switch [A] (
×1).
