LCIT PB3260
Replacement and Adjustment
Paper Transport Motor
Remove the rear cover. (
Rear Cover
)

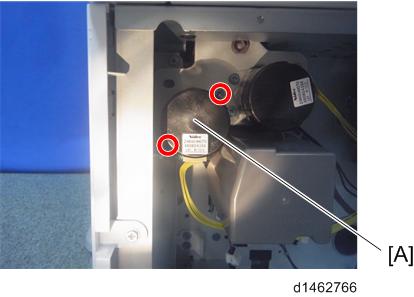

Remove the paper transport motor [A] (
×2,
×1).
