The end fence interlocks mechanically with the size detection actuator, and when the end fence is moved, the size detection actuator also moves.
When the paper feed tray is set, 4 paper size switches turn ON/OFF depending on the position of the size detection actuator. Paper size is detected by the detected combination of these switches.

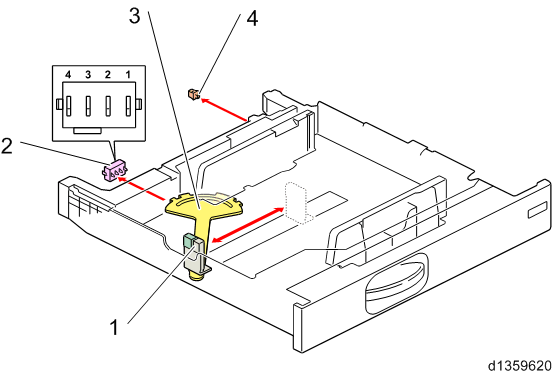

No. | Description | No. | Description |
|---|---|---|---|
1 | End fence | 3 | Size detection actuator |
2 | Paper size switch | 4 | Tray set switch |
Paper size switch operation
Paper size | Paper size switch | |||
|---|---|---|---|---|
SW4 | SW3 | SW2 | SW1 | |
SRA3 (12”×18”) | 1 | 0 | 1 | 0 |
A3 (DLT) | 0 | 1 | 0 | 0 |
B4 (LG) | 0 | 0 | 1 | 1 |
0 | 1 | 1 | 1 | |
A4_SEF | 1 | 1 | 1 | 0 |
LT_SEF | 1 | 1 | 0 | 0 |
B5_SEF | 1 | 0 | 0 | 0 |
A4_LEF (LT_LEF) | 0 | 0 | 0 | 1 |
B5_LEF (Exe_LEF) | 0 | 0 | 1 | 0 |
A5_LEF | 0 | 1 | 0 | 1 |
