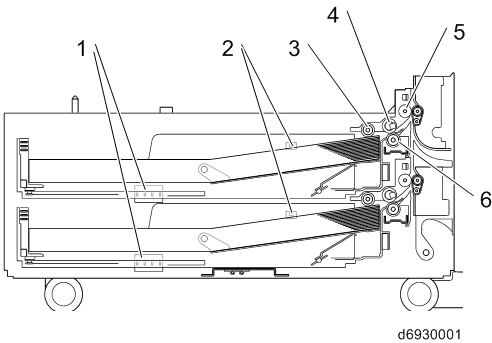

No. | Description |
|---|---|
1 | Paper size switch |
2 | Tray set switch |
3 | Pick-up roller |
4 | Feed roller |
5 | Transport roller |
6 | Friction roller |

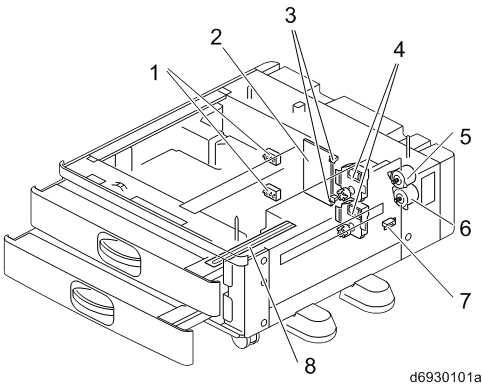

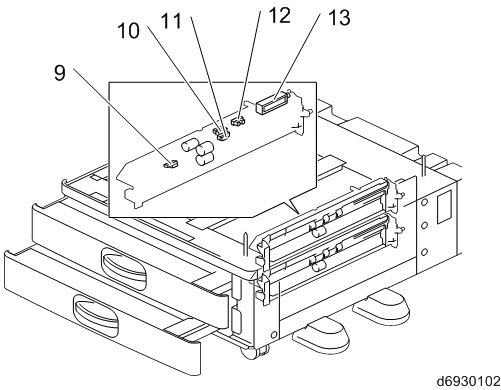

No. | Description | No. | Description |
|---|---|---|---|
1 | Paper size switch | 8 | Anti-condensation heater |
2 | Bank controller board | 9 | Paper feed sensor |
3 | Tray set switch | 10 | Paper end sensor |
4 | Tray lift motor | 11 | Vertical Transport sensor |
5 | Paper feed motor | 12 | Upper limit sensor |
6 | Transport motor | 13 | Pick-up solenoid |
