When the paper feed tray is set in the main unit, the set switch switches ON, and it is detected that the tray is set. At this time, the coupling of the lift motor engages with the shaft at the rear of the tray, the motor rotates, and the tray base plate is lifted up. The paper surface pushes up the pickup roller, the tray base plate is lifted until the upper limit sensor switches OFF (blocked), and the machine enters the standby mode.
When the paper feed tray is removed, the coupling is disengaged, and the base plate descends. At this time, the lift motor rotates until the coupling returns to the home position.

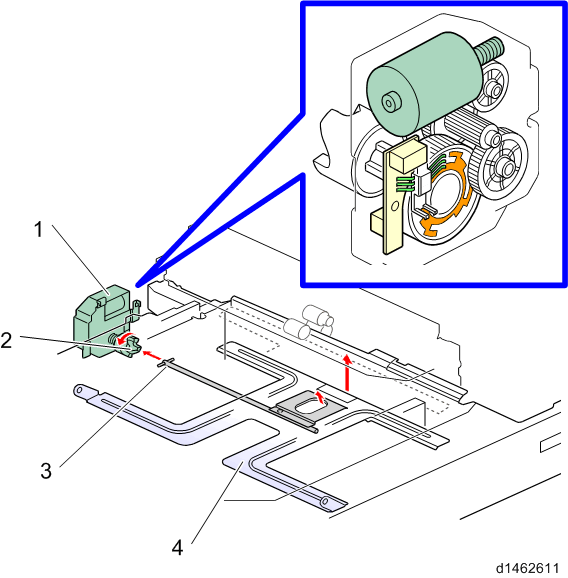

No. | Description | No. | Description |
|---|---|---|---|
1 | Lift motor | 3 | Tray rear side shaft |
2 | Coupling | 4 | Tray base plate |

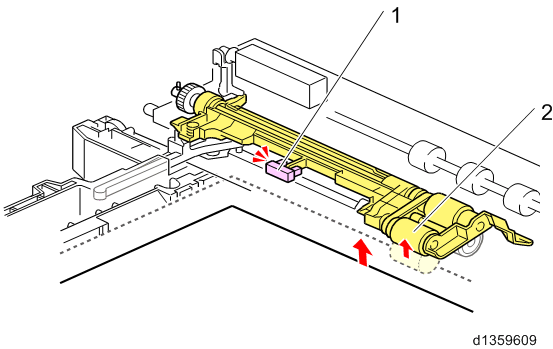

No. | Description | No. | Description |
|---|---|---|---|
1 | Upper limit sensor | 2 | Pick-up roller |
