Paper Feed Unit PB3240
Replacement and Adjustment
Rollers
Friction Roller
Remove the feed roller. (
Feed Roller
)

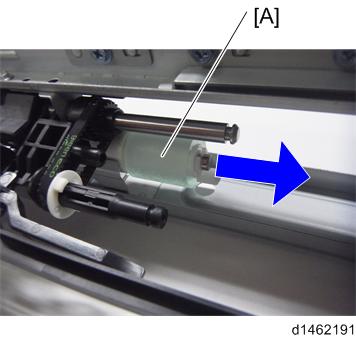

Remove the friction roller [A] (
×1).
