Paper Feed Unit PB3240
Replacement and Adjustment
Motors
Paper Feed Motor
Remove the rear cover. (
Rear Cover
)

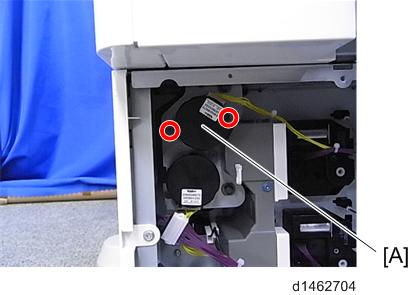

Remove the paper feed motor [A] (
×2,
×1).
