Paper Feed Unit PB3240
Replacement and Adjustment
Rollers
Feed Roller
Remove the pick-up roller. (
Pick-up Roller
)

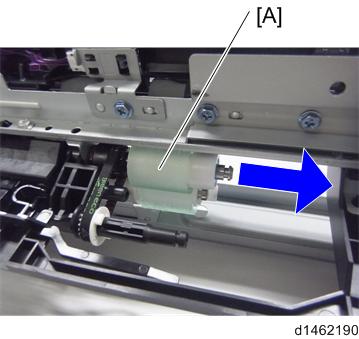

Remove the feed roller [A].
