Paper Feed Unit PB3240
Replacement and Adjustment
Exterior Cover
Rear Cover

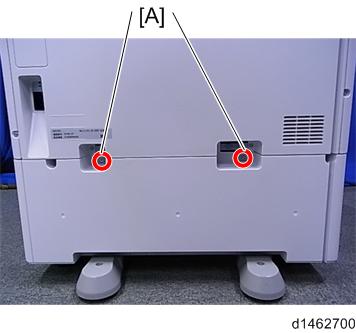

Remove the securing brackets [A] (
×2).

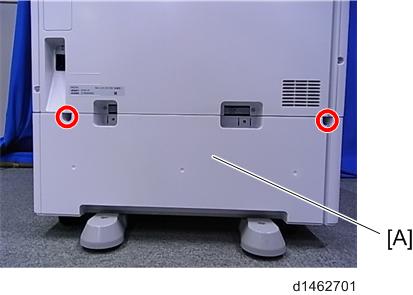

Remove the rear cover [A] (
×2).
