Paper Feed Unit PB3240
Replacement and Adjustment
Board
Controller Board
Remove the rear cover. (
Rear Cover
)

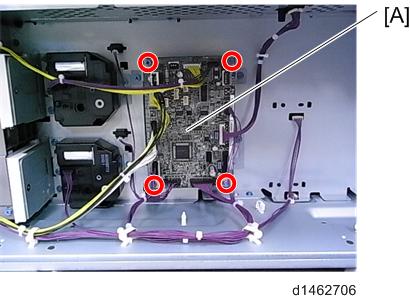

Remove the controller board [A] (
×4,
×10).
