Paper Feed Unit PB3240
Replacement and Adjustment
Motors
Tray Lift Motor (Upper)
Remove the rear cover (
Rear Cover
).

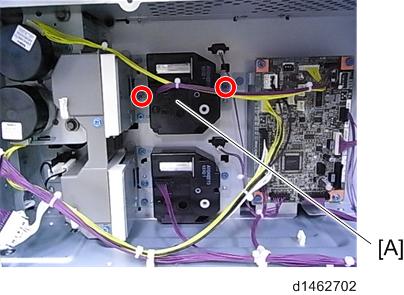

Remove the tray lift motor (upper) [A] (
×2,
×1).
