Paper Feed Unit PB3240
Replacement and Adjustment
Motors
Tray Lift Motor (Lower)
Remove the rear cover. (
Rear Cover
)

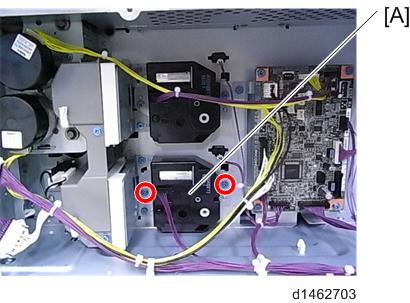

Remove the tray lift motor (lower) [A] (
×2,
×1).
