Paper Feed Unit PB3240
Replacement and Adjustment
Sensors
Upper Limit Sensor
Remove the paper feed unit. (
2nd Paper Feed Unit
,
1st Paper Feed Unit
)

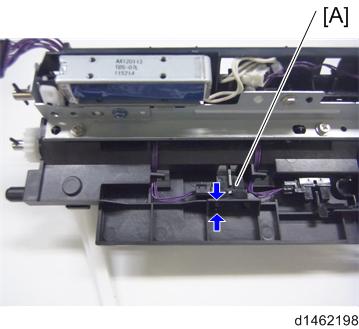

Remove the upper limit sensor [A] (
×1).
