1. Pull out the paper trays.
  2. Remove the rear cover. (Rear Cover)

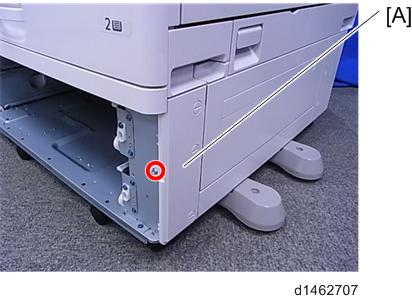

  3. Remove the right front cover [A] (×1).

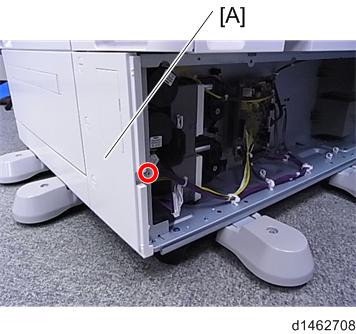

  4. Remove the right rear cover [A] (×1).

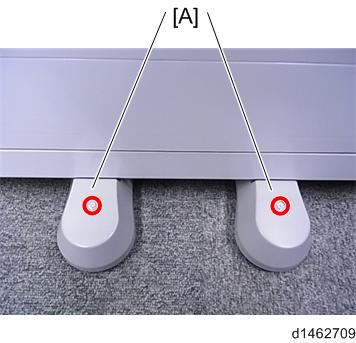

  5. Remove the stabilizer covers [A] (×2).

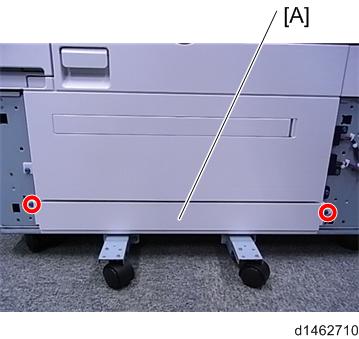

  6. Remove the right lower cover [A] (×2).

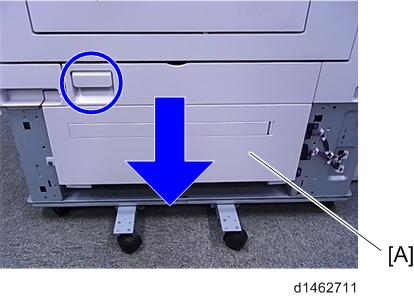

  7. Open the transport cover [A].

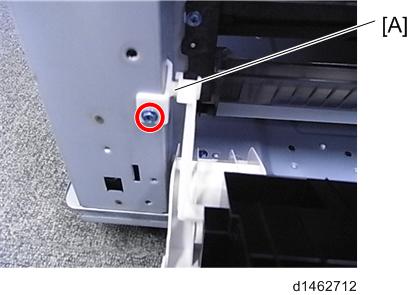

  8. Remove the stopper [A] (×1).
  9. Remove the interlock switch cover [A] (×1).

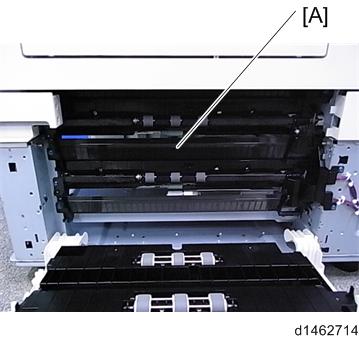

  10.  Remove the paper feed guide plate [A].

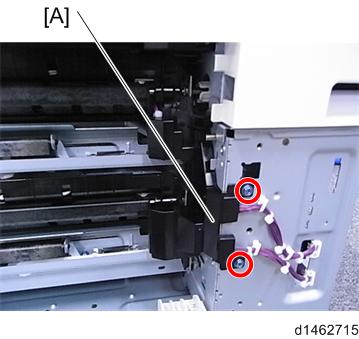

  11. Remove the harness cover [A] (×2).

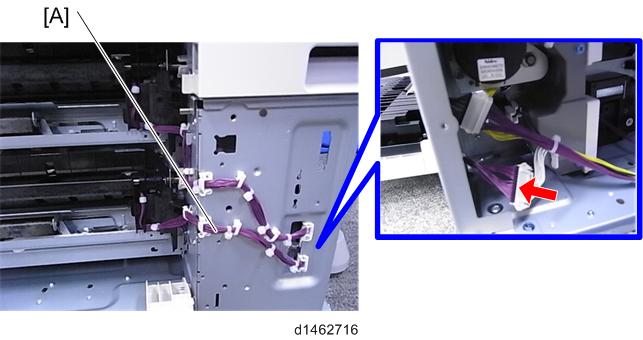

  12. Remove the harness [A] (×1,×4).

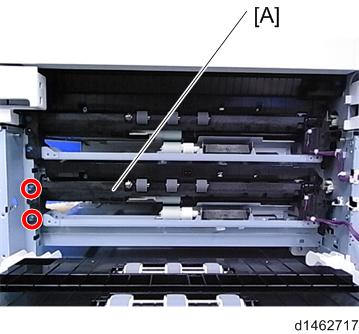

  13. Remove the 2nd paper feed unit [A] (×2).
