You can change the strength of the fold by changing the number of times that the crease roller mechanism presses the paper to make the fold. To do this, use SP6-315-001.
| SP No. | Name | [Min to Max/Init./Step] |
|---|---|---|
| 6-315-001 | Set Number of Creasing | [0 to 4 / 1 / times] 0: -1 1: 0 2: 1 3: 2 4: 3 |
For each fold, you can specify the number of times that the mechanism presses the paper from 0 to 4.
As the default, the number of times is set to 1. You can change the number with this SP setting.
Note: If you set the SP value to 0 (-1), the number of times is set to 0.
If the number of times increases, the throughput decreases.

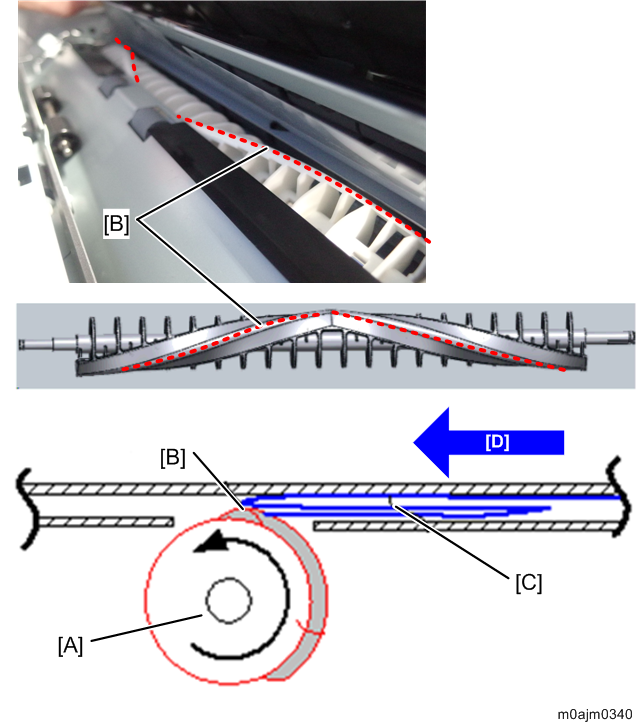

The internal multi-fold unit makes a crease fold by rotating the crease roller [A], which has a protrusion [B] as shown below, along the fold of the paper [C]. (Paper feed direction [D])
