Internal Multi-fold Unit FD3000
Replacement and Adjustment
Sensors
Crease HP Sensor
Remove the rear cover. (
Rear Cover
)

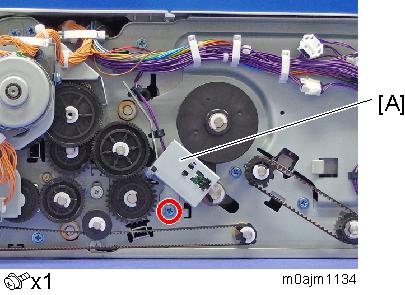

Remove the crease HP sensor bracket [A].

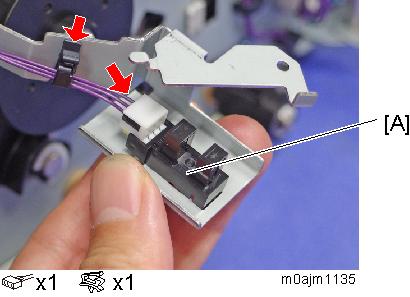

Remove the crease HP sensor [A].
